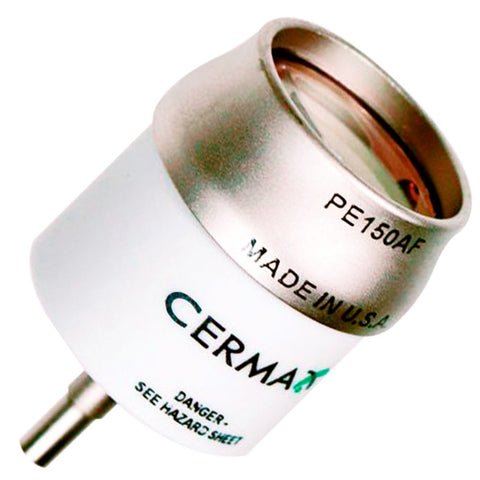

Excelitas PE150AF - 150W - 11.7V DC - Parabolic Ceramic Xenon
The PE150AF is the smallest lamp in the Cermax® portfolio. While small in size, it includes all the same features that has made Cermax the lamp of choice for high-intensity applications where full spectrum light is required. With its robust design, compact size and pre-aligned reflector, this lamp excels where small footprints are required.
- Reflector Type: Parabolic
- Body Type: Ceramic
- Total Visible Output: 1350 Lumens
- Power - Nominal: 150 Watts
- Power - Range: 100-150 Watts
- Current - Nominal: 11 Amps (DC)
- Current - Range: 10-14 Amps (DC)
- Ignition Voltage: 23-30 kilovolts (system dependent)
- Operating Voltage - Nominal: 11.7 Volts (DC)
- Operating Voltage - Range: 10-13.6 Volts (DC)
- Lifetime: 1000 hours typical
- Temperature: 120° C (maximum)
- Radiant Output: 16 Watts
- UV Output (<390 nm): 0.9 Watts
- IR Output (>770 nm): 8 Watts
Equipment Used In
- Fujinon Fiber Optic Light Source EPX-2200
- Fujinon Fiber Optic Light Source EPX-2500
About Excelitas Technologies
Excelitas manufactures the Ceramax® line of ceramic xenon lamps, a leading technology used in diagnostic and surgical endoscopes, surgical microscopes, and surgical headlamps. Their products can also be found in high performance video and home theater projectors. Excelitas was founded in 2010, and continues to expand the markets and applications their technology serves.
| Arc Gap (inches) | 0.032 |
|---|---|
| Arc Gap (mm) | 0.81 |
| Cathode Defocus 'D' (inches) | 0.014 |
| Cathode Defocus 'D' (mm) | 0.36 |
| Color Temperature | 5900K |
| Current | 12.5 Amps (DC) |
| Current Range | 10-14 Amps (DC) |
| IR Output (>770NM^3) | 8 |
| Lamp Type | Parabolic |
| Maximum Operating Power | 120° Celsius |
| Minimum Pulse Duration | 100 Ns |
| Power Range | 100-150W |
| Radiant Output | 16W |
| Rated Life Hours | 1000 |
| UV Output (<390NM^3) | .9W |
| Visible Output (390-770NM^3) | 1350 Lumens |
| Voltage Range | 10 |
| Volts | 11.7 |
| Watts | 150 |
| Window Diameter (inches) | 0.77 |
| Window Diameter (mm) | 19.56 |
| ProLampSales Order Code | 4252961079428 |
|---|---|
| Brand | Excelitas |
| MPN | PE150AF |
| HS Code | 853941 |
