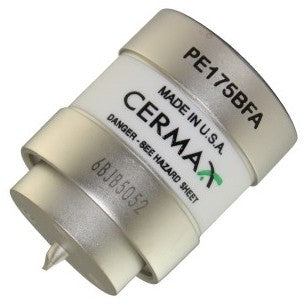

Excelitas PE175BFA - 175W - 12.5V DC - Parabolic Ceramic Xenon

The 175 Watt Cermax® Xenon lamp is well suited for designs that do not require the high intensity associated with its 300 Watt sibling. Featuring the same robust design synonymous with the Cermax family, this lamp provides a broad spectral output and the ability for the user to tune its output with catalog filters to match their desired spectral requirements.

Reflector Type: Parabolic
Body Type: Ceramic
Total Visible Output: 2200 Lumens
Power - Nominal: 175 Watts
Power - Range: 150-200 Watts
Current - Nominal: 14 Amps (DC)
Current - Range: 12-16 Amps (DC)
Ignition Voltage: 23-35 kilovolts (system dependent)
Operating Voltage - Nominal: 12.5 Volts (DC)
Operating Voltage - Range: 11-14 Volts (DC)
Lifetime: 1000 hours typical
Temperature: 150° C (maximum)
Radiant Output: 25 Watts
UV Output (<390 nm): 1.2 Watts
IR Output (>770 nm): 14 Watts

Cross Reference Part Numbers

Equipment Used In

About Excelitas Technologies

Excelitas manufactures the Ceramax® line of ceramic xenon lamps, a leading technology used in diagnostic and surgical endoscopes, surgical microscopes, and surgical headlamps. Their products can also be found in high performance video and home theater projectors. Excelitas was founded in 2010, and continues to expand the markets and applications their technology serves.

Arc Gap (inches)	0.045
Arc Gap (mm)	1.14
Cathode Defocus 'D' (inches)	0.003
Cathode Defocus 'D' (mm)	0.08
Color Temperature	5600K
Current	14 Amps (DC)
Current Range	12-16 Amps (DC)
IR Output (>770NM^3)	14
Lamp Type	Parabolic
Maximum Operating Power	150° Celsius
Peak Intensity (Candelas)	3
Power Range	150-200W
Radiant Output	25W
Rated Life Hours	1000
UV Output (<390NM^3)	1.2W
Visible Output (390-770NM^3)	2200 Lumens
Voltage Range	11-14V (DC)
Volts	12.5
Watts	175
Window Diameter (inches)	1
Window Diameter (mm)	25.4

ProLampSales Order Code	4252960981124
Brand	Excelitas
MPN	PE175BFA
HS Code	853941
