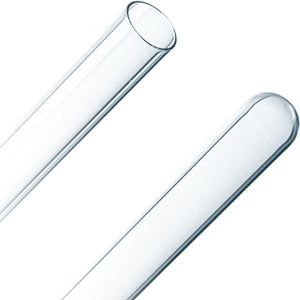

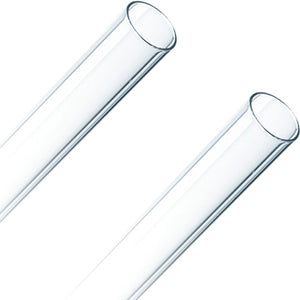

Quartz Sleeves for Ultraviolet Light Bulbs

About Quartz Sleeves

Quartz sleeves are commonly used in ultraviolet water purification equipment for several important reasons. These sleeves play an important role in optimizing the performance and longevity of the lamp and system as a whole, ensuring that the UV water purifier effectively disinfects water.

Protection of the UV Lamp

One of the primary functions of a quartz sleeve is to protect the ultraviolet light bulb from direct contact with water. The lamp is usually made of fragile materials like glass or certain metals. Exposing the lamp directly to water could lead to corrosion, contamination, or physical damage. The quartz sleeve acts as a protective barrier, shielding the lamp from water and any contaminants, while allowing the UV light to pass through.

High Transmission of UV Light

Quartz has excellent transmission properties for UV light, particularly in the UV-C range, which is most effective for disinfecting water. Unlike other materials, quartz allows for almost unobstructed passage of UV-C radiation. This ensures that the ultraviolet is effectively delivered to the water. The high transmissivity of quartz ensures that the water purifier operates at peak efficiency.

Thermal Management

UV lamps generate heat during operation, and quartz is known for its ability to withstand high temperatures without cracking or degrading. This makes quartz sleeves ideal for use in UV water purification systems, where the lamps generate heat as part of the disinfection process. The heat resistance of quartz ensures that it can maintain its structural integrity even in environments with elevated temperatures.

It is also important that the quartz sleeve provides a barrier around the UV-C lamp itself. The water purifier is most commonly connected to the cold water line, and the lower temperature of that water could cause a reduction in the efficiency of the ultraviolet bulb, decreasing output. The sleeve prevents the cold water from touching the lamp.

Durability and Longevity

Quartz is a highly durable material that is resistant to wear and tear over time. This is particularly important in UV water purification equipment, which is often used continuously for extended periods. Quartz sleeves can withstand the constant exposure to the UV-C radiation, ensuring that they continue to perform effectively without degradation. This longevity reduces the need for frequent replacements, making it a cost-effective material. Manufacturers recommend keeping the sleeve clean and replacing once a year on the same schedule as the lamp.

It should be noted, however, that quartz sleeves are not shatterproof, and they provide little protection to the ultraviolet lamp. If something can physically damage or break the sleeve, it can also damage the bulb itself. Some UV systems use shatterproof lamps as an extra feature, but the primary purpose of the quartz sleeve is not physical protection.

Chemical Resistance

Water treatment often involves exposure to various chemicals, whether in natural sources or added during the purification process. Quartz is highly resistant to a wide range of chemicals, including chlorine and other disinfectants, which could otherwise damage or degrade other materials. This resistance ensures that quartz sleeves maintain their integrity and performance, even when exposed to chemically treated water. While fouling of the sleeve will happen over time, quartz is resistant to this process.

Ease of Cleaning and Maintenance

Quartz sleeves are relatively easy to clean and maintain. Over time, mineral buildup and contaminants can accumulate on the sleeve, potentially obscuring or blocking the UV light. However, quartz sleeves can be easily cleaned using mild abrasives or specialized cleaning solutions without risking damage to the material. This makes it easier to maintain the efficiency of the UV water purifier.

Corrosion Resistance

Water treatment equipment is often exposed to moisture and humidity, which can cause corrosion in metal components. Quartz, however, is non-corrosive, meaning it will not rust or degrade when exposed to water or humid environments. This property ensures that the sleeve remains reliable over time.

Non-Toxic Material

Quartz is a natural, non-toxic material that poses no risk to the water being purified. When used in UV systems, quartz ensures that the process remains safe and that the water is not contaminated with harmful substances, which is particularly important for drinking water systems or when used with an aquarium or pond.

Quartz sleeves contain no mercury, although the ultraviolet bulb will contain mercury. This also makes it easier to dispose of the sleeve, as it can simply be thrown away. There is no risk if just a quartz sleeve breaks.
