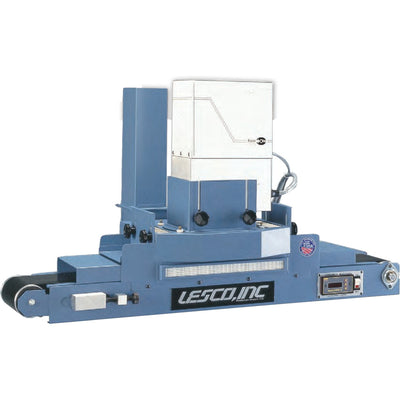

Lesco C612D Heavy Duty Industrial UV Conveyor

The C Series of UV conveyors made by our Lesco division include the C636, C612 and C2000. All feature Fusion electrodeless light sources with power ratings of 300 and 600/400 W/inch. Also available are Fusion light sources with three different UV spectral outputs to exactly match the curing requirements of the selected UV chemistry. These industrial grade UV curing systems are built to withstand around the clock production cycles and designed to meet the rigorous demands of commercial applications.

Standard Features

• 6, 10 and 12" cure widths
• 1 or 2 rows of lamps
• F300, F450 and F600 Fusion electrodeless lamps
• .1-110 fpm variable belt speed
• 0-4" lamp focus adjustment

System includes:

• Light shielding
• Twelve inch belt width.
• Six, ten or twelve inch cure width (depending on lamp choice).
• Variable belt speed.
• Adjustable lamp height.
• Clearance for two inch high parts.
• Variable vacuum hold down.
• Teflon coated fiberglass belt.
• Build-in exhaust blower.
• Easy finger tip belt adjustment.
• Digital Speed Control W/ read out
• Dimensions 70" L x 32"W x 36"H

About Lesco UV

Based in California, Lesco UV is a manufacturer of ultraviolet curing equipment. The company offers a full line of traditional and LED curing devices, including conveyors, chambers, spot curing, and handheld/surface equipment. Lesco UV is one of the premier names in the ultraviolet curing industry.
