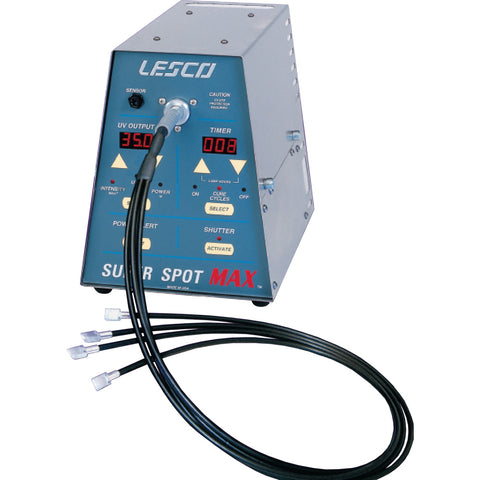

Lesco SuperSpot Max
The Super Spot MAX from Lesco offers the process engineer tremendous control and monitoring from both local and remote monitoring locations. It is ideal for any spot curing application where high UV intensity at highest regulation is required for process speed improvement, regulatory compliance, and superior cure strength. It is perfect for curing adhesives, coatings, inks, and other UV curable materials where physical location and cure area dictate the use of a discrete fiber optic UV delivery system.
Featuring a membrane front panel and a powerful RS485 serial interface, it allows access to every parameter of the process from the shop floor or the supervisor's desk. It's powerful but user-friendly DataMax™ software creates records of every cure cycle, keeping them in its built-in memory until downloaded and reset. Simple alphanumeric commands add to the ultra flexible serial interface capabilities. The Super Spot MAX also features a proprietary Optical Feedback system that insures uniform output irradiance and optimal process validation.
Standard Features (Super Spot MAX)
- UVA Peak (@315-400nm) 25,000 mW/ cm2; UVA Rates (@315-400nm) 20,000 mW/cm2; Total Intensity (UVA, B, C, V) 30,000+ mW/cm2
- Spectral Output: VIS/UVA/UVB/UVC; major peaks @ 365nm, 254nm, 302nm, 312nm and 405nm; filterable
- 8.5 x 11" x 13.5" deep; 20 lbs.
- Mercury vapor, 100W DC short arc
- Liquid-filled or fiber optic lightguide
System includes
- Optical Feedback for constant intensity and process control
- RS-232 & RS-485 Serial communication capability

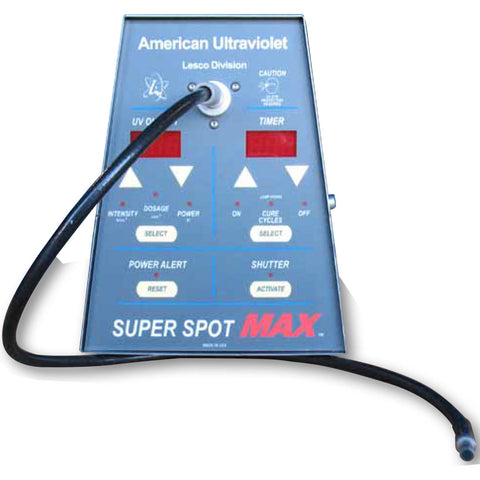

- Membrane keypad with digital readouts
- I/0 connectors for automation applications
- Stainless steel enclosure
- Internal hour meter for recording lamp usage
- Remote footswitch with receptacle for automatic operation
- Solid state bi-level power supply
- Air-cooled lamp and power supply with ventilation protection
- IR filter for less heat
- One pair of UV safety eyewear
- Switch controlled shutter interface I/O (VUM1029)
- Selectable 120VAC/ 220VAC 50/60HZ
About Lesco UV
Based in California, Lesco UV is a manufacturer of ultraviolet curing equipment. The company offers a full line of traditional and LED curing devices, including conveyors, chambers, spot curing, and handheld/surface equipment. Lesco UV is one of the premier names in the ultraviolet curing industry.
| Dimensions | 8.5" x 11" x 13.5" |
|---|---|
| Expected Bulb Life Hours | 2000 |
| UV Output | 15-25W/cm2 |
| Warranty | 1 Year |
| ProLampSales Order Code | 4789661663364 |
|---|---|
| Brand | Lesco UV |
| MPN | VSM3002 |
| Model | SuperSpot Max |
