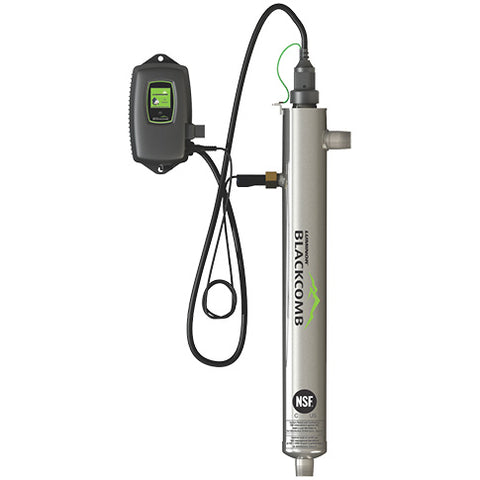

Luminor LB6-061B Blackcomb UVC Water Purifier - 7.6 GPM - 3/4" MNPT Inlet/Outlet - NSF Class B

For comprehensive whole home UV water treatment, consider LUMINOR's Class B BLACKCOMB 6.1 line. Incorporating a true 254nm discrete UV monitor, this BLACKCOMB series offers continuous monitoring for 24-hour peace-of-mind. Using Teflon technology for reduced fouling, these sensors allow for the addition of a solenoid shut-off valve and a 4-20mA output allowing for remote monitoring or data logging.

A color user interface allows for easy visual identification of UV intensity, remaining lamp life and any error or fault codes as well as a monitoring of a full system diagnostic on start-up. The UV system also incorporates QR codes to access lamp change information and videos via web access. The controller is a constant current electronic power source and is housed in a splash-proof case that comes standard with a "future-proof" expandability port for future upgrades or options.

Rugged 304 stainless steel, single-end reactors allow for lamp change without the need to drain the reactor chamber. Low pressure (LP) coated UV lamps are used offering a consistent output over their 9,000 hour rated life.

Features

• Flow rates stated at NSF Class B dose of 16 mJ/cm2 at 70% UVT
• Color user interface with full diagnostics and warnings including QR codes
• IEP (infinite expandability port) for future upgrades and options
• 304 stainless steel (BLACKCOMB) / 316L stainless (BLACKCOMB-HO), axial flow reactors allow for simple lamp/sleeve service
• All systems include integral flow restrictor
• 254 nm Teflon based UV sensor with 4-20 mA output capabilities and solenoid-ready capabilities (on LB6/LBH6 versions ONLY)

About Luminor Environmental

Based in Canada, Luminor Environmental specializes in ultraviolet water treatment solutions for residential, light commercial, commercial/industrial, and municipal applications. The company strives to provide its customers with industry-leading service, support, product, and warranty. Luminor distributes UV water purification solutions to over 55 countries with hundreds of thousands of installations.
