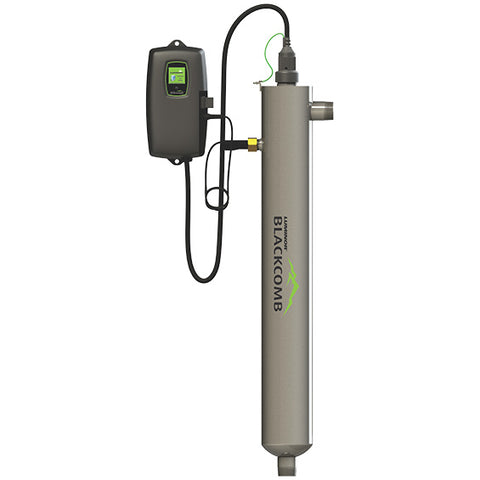

Luminor LBH6-151-HW Blackcomb-HO UVC Water Purifier - 10 GPM - 1" MNPT Inlet/Outlet - Hot Water - IEP Port - System Diagnostics - UV Sensor

LUMINOR hot water systems are designed to be used for legionella control and disinfection of hot water recirculation loops.

For higher flow rates, consider LUMINOR's BLACKCOMB-HO 6.1 line of "Residential Crossover" UV water treatment systems.

Installed in a large residence or in a light commercial application, continuous UV water quality monitoring is provided by the inclusion of a true 254nm discrete UV monitor. Using Teflon technology for reduced fouling, these sensors allow for the addition of a solenoid shut-off valve and a 4-20mA output allowing for remote monitoring or data logging.

A color user interface allows for easy visual identification of UV intensity, remaining lamp life and any error or fault codes as well as a monitoring of a full system diagnostic on start-up. The system also incorporates QR codes to access lamp change information and videos via web access. The controller's universal input, constant current electronic power source is housed in a splash-proof case and comes standard with a "future-proof" expandability port for future upgrades or options.

Commercial grade axial flow 316L stainless steel, single-end reactors allow for lamp change without the need to drain the reactor chamber. Low pressure, high-output (LP-HO) coated UV lamps offer a consistent output over their 10,000 hour rated life.

Features

• NEW plastic mounting clamps (replaces gear clamp design)
• Axial flow 316L stainless steel reactors for optimum fluid dynamics yet still allows for lamp/sleeve service without the need to drain the water
• Designed and manufactured to ASME pressure vessel standards
• Low pressure high-output (LP-HO) coated UV lamps for increased power density and consistent UV output throughout the rated lamp life of 10,000 hours
• Sensor port for future upgradeability, comes with integral visual glow plug
• LED lamp countdown constant current electronic ballast (only on 4.1 series)
• Color user interface with full diagnostics and warnings including QR codes
• IEP (infinite expandability port) for future upgrades and options
• 254 nm Teflon based UV sensor with 4-20 mA output capabilities and solenoid ready capabilities (optional modules required)
