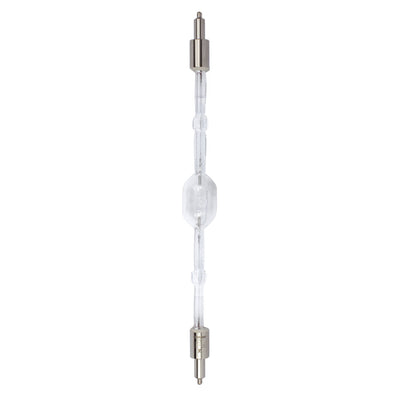

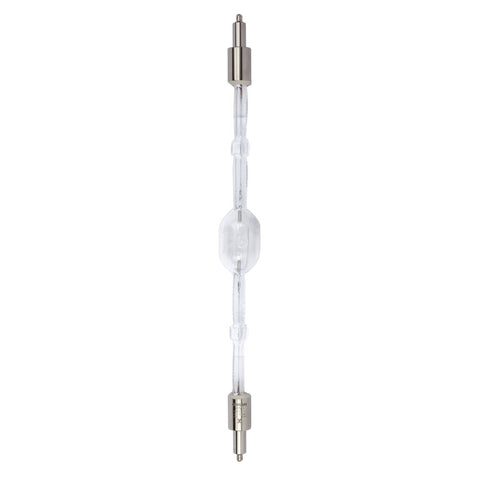

Osram 54314 HMI 4000W/DXS | 4,000 Watt, Metal Halide, Double-Ended, 6000K
4,000 watt, metal halide, double-ended, 6000K
OSRAM HMI double-end lamp family offers excellent reliability. Enhanced heat dissipating technologies and compression seal bases are additional benefits offered on types ≥ 6000W, offering lamp life increases of 25% on average.
Product features and benefits
- High intensity light providing true color performance with a CRI>90
- Longer life with heat dissipating round moly-foil design on lamps ≥ 6000W
- Mechanically robust with eXtreme Seal (XS) technology, up to 450°C at the pinch seal
- Capable of hot restrike ignition
- High color stability with average changes in color temperature during lamp life only 1°K/hr
- Dimmable down to 40% with stable color using many electronic ballasts
- High energy efficiency providing up to 100 LPW
- Compression sealed base provides ehanced durability
Areas of application
- Studio, TV and film
- Professional Photography
- Solar Simulation
Product Notes
DXS=Double-ended eXtreme Seal technology
p (Operating Position) = Horizontal
Optimized lamp eXtreme Seal (XS) technology to withstand interior base temperatures of up to 450 degrees celsius.
Equipment Used In
- ARRI 540-200(ARRI HMI4000)
- DESISTI LIGHTING REMBRANDT 4000W
- MOLE RICHARDSON 6171 (HMI MOLE SOLAR-ARC 4000W)
- MOLE RICHARDSON 6271 MOLE SOLAR-ARC
- MOLE RICHARDSON HMI MOLE SOLAR-ARC 4000W
- MOLE RICHARDSON MOLE SOLAR-ARC 400W
- STRAND LIGHTING FRESNEL QTZCOLOR 14-IN 4000W
- STRAND LIGHTING SIRIO 4000W - 3790
- SUNBURST FRESNEL 14 4000HMI
About Osram
Osram provides businesses and consumers with a wide portfolio of products, encompassing many types of technical and professional lighting applications. These include automotive lighting, complete "Smart" digital systems, advancted LED chips, speciality light bulbs and fixtures, and more. Osram serves both consumer and professional markets, and manufactures traditional lighting products, as well as LED lamps and luminaires.
| Average Rated Life | 500 h |
|---|---|
| Bulb Shape | R36X65/700 |
| Cooling | Convection |
| Current (A) | 24 |
| Diameter d (in) | 1.417 in |
| Electrode Gap - cold (mm) | 34 mm |
| Hot Restart | Yes |
| Lamp Type | DOUBLE ENDED |
| Maximum Base Temperature (C) | 450 C |
| Operating Position | p 15 |
| Volts | 200 |
| Watts | 4000 |
| ProLampSales Order Code | 4369537335428 |
|---|---|
| Brand | Osram |
| Series | HMI |
| MPN | 54314 |
| Model | HMI 4000W/DXS |
| UPC | 4008321210203 |
| HS Code | 853932 |
