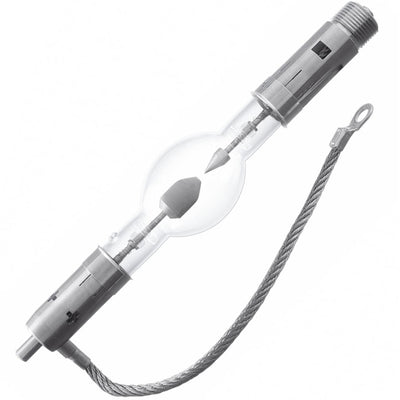

Osram 69485 XSTAGE 7000W OFR | 7000 Watts Xenon High Pressure Lamp
7000 Watts Xenon High Pressure Lamp
With Xstage, OSRAM has developed a new line of lamps especially suited for event and architectural lighting. Based on the highly recognized XBO lamp series, these new xenon short arc lamps are optimized for outdoor use. In order to facilitate safe installation for field applications, the robust base provides more stability. Additionally, the shortened arc gap allows for more luminance and, therefore, increased brightness. Xstage is intended to be used in fixtures with screw-in sockets. Just like the XBO lamp series, they allow a hot restart and have the daylight color temperature of 6000K. Due to its inner pressure, the lamp comes in new, more durable outdoor packaging.
Features & Benefits
- High luminance (point source) with rugged design for spotlight applications
- Color temperature approximately 6000K - simulates daylight
- Continuous spectrum in the visible range
- High color rendering > 95
- High arc stability
- DC operation
- Hot restart
Product Notes
OFR=Ozone Free
This lamp has positive pressure even when cold. Please read safety/warning instructions before using this lamp.
Distance a is from end of base to the respective electrode tip (cold.
With vertical operating position: anode(+) on top.
About Osram
Osram provides businesses and consumers with a wide portfolio of products, encompassing many types of technical and professional lighting applications. These include automotive lighting, complete "Smart" digital systems, advancted LED chips, speciality light bulbs and fixtures, and more. Osram serves both consumer and professional markets, and manufactures traditional lighting products, as well as LED lamps and luminaires.
| Average Luminance (cd/cm2) | 120000 cd/cm2 |
|---|---|
| Average Rated Life | 650 h |
| Average Rated Life Horizontal | 1000 hr |
| Base Anode | SFaX28-27 |
| Base Cathode | SFc28-27 |
| Bulb Shape | KO156 |
| Cooling | Required |
| Current (A) | 160 A |
| Current Control Range (A) | 110-165 A |
| Diameter d (in) | 2.756 in |
| Electrode Gap - cold (mm) | 8 mm |
| Hot Restart | Yes |
| Lamp Type | Short Arc Xenon |
| Luminous Area (mm) | 2 |
| Luminous Intensity (cd) | 33000 cd |
| Maximum Base Temperature | 230 C |
| Operating Position | s90 |
| Volts | 40 |
| Watts | 7000 |
| ProLampSales Order Code | 4377821347972 |
|---|---|
| Brand | Osram |
| Series | XBO |
| MPN | 69485 |
| Model | XSTAGE 7000W OFR |
| UPC | 4008321288851 |
| HS Code | 853941 |
