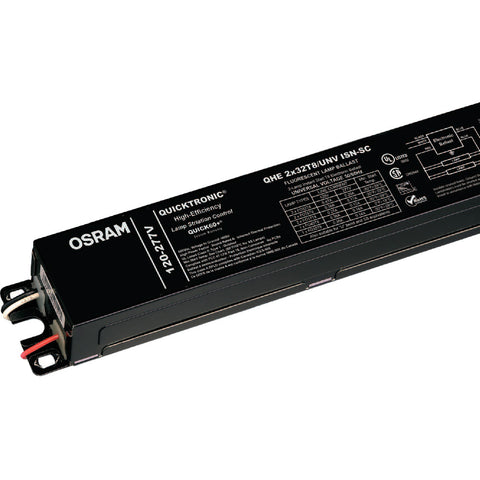

Osram QHE 2X32T8/UNV-ISN-SC-1-CC-B Quicktronic Electronic Instant Start Ballast - 120-277V - 10ct
($22.79 Each - Sold in Case of 10)
This product is an Osram QHE 2X32T8/UNV-ISN-SC-1-CC-B Quicktronic electronic instant start ballast. It has an input frequency of 50/60 Hz and a universal 120-277V voltage.
QUICKTRONIC High Efficiency, (QHE) Type CC energy saving electronic T8 ballasts offer major advantages:
Same Light, Less Power! Up to 6% in energy savings compared to standard T8 low power electronic ballasts without compromising light output. Maximum energy savings when compared to F40T12 magnetically ballasted systems
UL Type CC compliant: ballasts utilize a micro-controller based circuit to reduce arcing caused by loose connections or improper lamp pin to socket connections.
Lamp Striation Control (LSC): T8 energy saving lamps should beoperated above 60°F, but under certain conditions the lamps may striate. LSC circuitry may minimize or eliminate this condition; however there are limited applications where LSC circuitry may not entirely mitigate lamp striations. (Please consult lamp manufacturersfor additional details.)
Features
- High Efficiency Systems over 90% efficient
- UL Type CC Rated (Commercial Cabinet)
- Lamp Striation Control (LSC)
- Min. Starting Temp: -20°F (-29°C) for T8 lamps, 60°F (16°C) for Energy Saving T8 lamps, 0°F (-18°C) for FO40T8 lamps
- Flexible De-Lamp Combinations
- QHE ballasts meet the most demanding utility rebate standards
- 30-50% energy savings
- RoHS compliant
- Lead-free solder and manufacturing process
Applications
- UL Type CC
- Refrigerated cases
- Walk-in coolers
- Commercial cabinets
- Display cases
- Applications that could expose lamp and sockets to vibration and potential movement
- Lamp Striation Control (LSC)
- General lighting applications where energy saving T8 lamps may striate, particularly for the F25 energy saving T8 lamps.
- Operate from 120V through 277V
- Eliminates "wrong voltage" errors
- Reduces inventory by 50%
- Utilizes Instant Start operation for Highest System Efficacy
- Low temperature starting capability
- Parallel circuity - keeps remaining lamps lit if one or more go out
- Very low harmonic distortion (<10%) THD
- Operate at >42 kHz to reduce potential interference with infrared control systems
QUICKTRONIC High Efficiency (QHE) ballasts are ideally suited for:
T8 energy saving lamps should not be used in applications below 60°F lamp ambient.
System Information
QUICKTRONIC High Efficiency (QHE) System advantages:
About Osram
Osram provides businesses and consumers with a wide portfolio of products, encompassing many types of technical and professional lighting applications. These include automotive lighting, complete "Smart" digital systems, advancted LED chips, speciality light bulbs and fixtures, and more. Osram serves both consumer and professional markets, and manufactures traditional lighting products, as well as LED lamps and luminaires.
Ballast Factor | Normal |
---|---|
Ballast Type | Electronic |
Input Frequency | 50/60 Hz |
Input Volts | 120-277 |
No. of Lamps | 2 |
Start Method | Instant |
ProLampSales Order Code | 6866704498888 |
---|---|
Brand | Osram |
Series | Quicktronic |
MPN | 49383 |
Model | QHE 2X32T8/UNV-ISN-SC-1-CC-B |
UPC | 046135493836 |
HS Code | 850410 |
