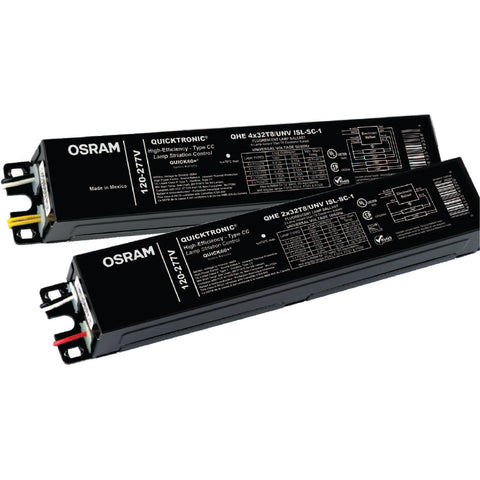

Osram QHE 3X32T8/UNV-ISL-SC Quicktronic Electronic Instant Start Ballast - 120-277V

Osram QHE 3X32T8/UNV-ISL-SC Quicktronic Electronic Instant Start Ballast - 120-277V - 10ct

  • $164.95

($16.49 Each - Sold in Case of 10)

Contact Us for current stock/lead time.

This product is an Osram QHE 3X32T8/UNV-ISL-SC Quicktronic electronic instant start ballast. It has an input frequency of 50/60 Hz and a universal 120-277V voltage.

OSRAM QUICKTRONIC High Efficiency, (QHE) energy-saving electronic T8 ballasts offer several advantages:

Same Light, Less Power! Up to 6% in energy savings compared to standard T8 low power electronic ballasts without compromising light output. Maximum energy savings when compared to F40T12 magnetically ballasted systems

Parallel Circuitry: keeps remaininglamps lit if one or more go out.

Lamp Striation Control (LSC): T8 energy saving lamps should be operated above 60°F, but under certain conditions the lamps may striate. LSC circuitry may minimize or eliminate this condition; however there are limited applications where LSC circuitry may not entirely mitigate lamp striations.

These ballasts are also RoHS compliant and feature lead-free solder and manufacturing process.

QUICKTRONIC High Efficiency (QHE) systems are covered by the QUICK 60+ warranty, the first and most comprehensive lamp & ballast system warranty in the industry.

Features

  • High Efficiency Systems over90% efficient
  • Lamp Striation Control (LSC)
  • Over 100 LPW (lumens/watt) with OCTRON SUPERSAVER® lamps
  • Lowest power T8 I.S. Systems
  • Universal voltage (120-277)
  • Small Can enclosure size
  • 30-50% Energy savings
  • Min. Starting Temp: -20°F (-29°C) for T8 lamps, 60°F (16°C) for Energy Saving T8 lamps, 0°F (-18°C) for FO40T8 lamps
  • <10% THD
  • Virtually eliminates lamp flicker
  • RoHS compliant
  • Lead-free solder and manufacturing process

Applications

QUICKTRONIC High Efficiency ballasts are ideally suited for:

  • Any applications where the lowest power T8 systems are needed for maximum energy savings
  • Energy Retrofits
  • Commercial & Retail
  • Hospitality & Institutional
  • New Construction

System Information

QUICKTRONIC High Efficiency (QHE)System advantages:

  • Operate from 120V through 277V
  • Eliminates "wrong voltage" errors
  • Reduces inventory by 50%
  • Utilizes Instant Start operation for
  • Highest System Efficacy
  • Low temperature starting capability
  • Very low harmonic distortion (<10%)THD
  • Operate at >42 kHz to reduce potential interference with infrared control systems

About Osram

Osram provides businesses and consumers with a wide portfolio of products, encompassing many types of technical and professional lighting applications. These include automotive lighting, complete "Smart" digital systems, advancted LED chips, speciality light bulbs and fixtures, and more. Osram serves both consumer and professional markets, and manufactures traditional lighting products, as well as LED lamps and luminaires.

Ballast FactorLow
Ballast TypeElectronic
Input Frequency50/60 Hz
Input Volts120-277
No. of Lamps3
Start MethodInstant

ProLampSales Order Code6866704269512
BrandOsram
SeriesQuicktronic
MPN49865
ModelQHE 3X32T8/UNV-ISL-SC
UPC046135498657
HS Code850410
