Sanitron S20,000C UVC Water Purifier - 333 GPM - 2" NPT Inlet/Outlet - Multi-Chamber
The SANITRON® series of models is an exceptional value. These water purifiers were designed to conform to U.S. Public Health Guidelines “Criteria for the Acceptability of an Ultraviolet Unit.” Each model is well-featured and can utilize a number of different optional accessories, such as an Ultraviolet Monitor or similar device for a more in-depth knowledge of the water purifier's operation. Applications include process facilities, home water wells, restaurants, schools, mobile homes, swimming pools, fish ponds, hospitals, laboratories, resorts, hotels, medical facilities, etc.

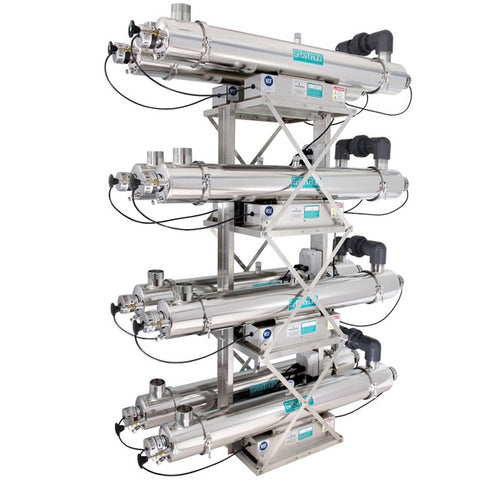

Multi-Chamber SANITRON® models are created through the combination of multiple S2400C Single-Chamber SANITRON® models, for the purpose of increasing flow rate and UV treatment capabilities. Models S2400C through S25,000C are available with alternate inlet/outlet fittings. SANITRON® Models S37C, S50C, and S2400C are NSF/ANSI 61 & 372 Certified. Our NSF/ANSI Model S2400C is used to build models S5,000C and up.
Product Highlights

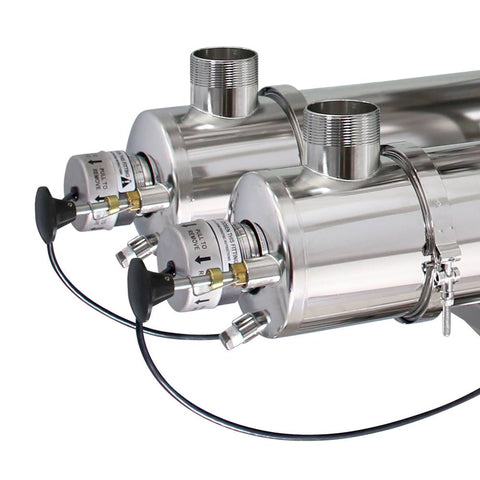

- 316 Stainless Steel chamber, electropolished and passivated
- Dual, Removable flared head for easy disassembly
- Exclusive EASY-OFF™ End Cap for effortless lamp change
- Drain Plug for in place draining of purifier chamber
- Sight Port for viewing germicidal lamp operation
- Patented dual-action wiper mechanism
- Models S2400C through S25,000C available with alternate inlet/outlet fittings
- Includes STER-L-RAY ® Lamps and CRYSTAL CLEAR™ Quartz Sleeves
- S37C, S50C, and S2400C are NSF/ANSI 61 & 372 Certified
- Our NSF/ANSI Certified Model S2400C is used to build models S5,000C and up.
- The Best Warranty in the Industry!
- NSF Certified Water Purifiers vs. Non-NSF Certified Water Purifiers Article
- UV Water Purifier Monitoring Options: Guardian™ Ultraviolet Monitors, STERALERT™ Lamp Status Alarm, and SENTRY™ Safety Sensor
Applications
The unique advantage of the UV method of sterilization of water is that nothing is added to the water. When chemical methods of treatment are used there may be handling problems, taste and odor problems, and undesirable chemical reactions with substances present in the water.
This difference is most significant when producing water for drinking or swimming, processing foods and bottled beverages, manufacturing cosmetics or pharmaceuticals, use in hospitals and research institutions, and tertiary treatment of municipal or industrial wastewater.
Institutional
- Laboratories
- Hospitals
- Clinics
- Maternity Areas
- Labor & Delivery Areas
- Pathology Labs
- Kidney Dialysis Labs
- Nursing Homes
- Universities
- Schools
- Veterinary Clinics
Transient Systems
- Resorts, Hotels, & Motels
- Ships, Yachts, Boats
- Campgrounds
- Restaurants
- Water Parks
- Amusement Parks
- Golf Course Water Holes
- Lakes and Ponds
- Fountain Water Features
- Ornamental Ponds
- Fish Ponds
- Swimming Pools
Community
- Apartment Complexes
- Condominium Complexes
- Trailer Parks
- Rural Water
- Villages, Towns, Cities
- Farms & Ranches
- Animal Husbandry
- Aquariums
- Fish Farms
- Mollusk Hatcheries
- Water Preserves
- Well Water
Industrial
- Pharmaceutical Mfg.
- Electronic Production
- Cosmetic Production
- Cooling Tower
- Power Generation
- Food Industry
- Ice Makers
- Pulp & Paper Production
- Water Vending Machines
- Laundry Water
- Pure Wash Water
- Bottled Water
- Beer, Wine
- Soft Drinks
- Fruit Juices
- Bottling Facilities
- Edible Oils
- Liquid Sugar
- Sweeteners
- Water Based Lubricants
- Dairy Processing
- Cistern Applications
Specialized
- TOC Reduction
- Ozone Reduction
Cross Reference Part Numbers
- ClorDiSys Flash Flood (Various Models)
About Atlantic Ultraviolet
Atlantic Ultraviolet was founded in 1963, manufacturing germicidal ultraviolet fixtures and equipment. Their products utilize germicidal UV lamps to destroy bacteria, mold, and viruses in the air and on surfaces. Atlantic Ultraviolet produces their own line of UV lamps, and continue to provide industry leadership in applied UV technology with increased research and development.
| Construction Material | 316 Stainless Steel |
|---|---|
| Country of Origin | USA |
| GPM | 333 |

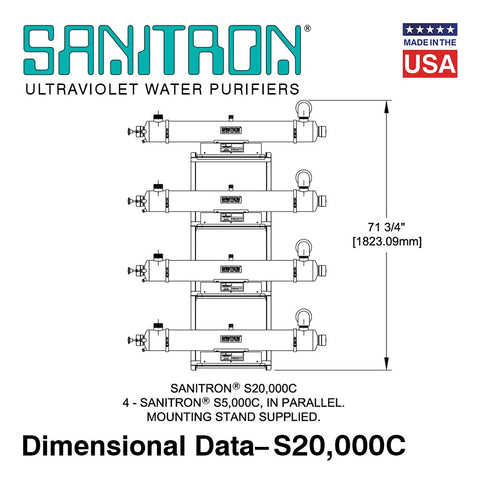

| Height | 71.5" |
| Inlet/Outlet | 2" NPT |
| Length | 52.125" |
| No. of Lamps | 8 |
| Warranty | 12 Years |
| Watts | 1120 |
| Width | 18.625" |
| ProLampSales Order Code | 4438304981124 |
|---|---|
| Brand | Atlantic Ultraviolet |
| Series | Sanitron |
| MPN | 25-4090 |
| Model | S20,000C |
| HS Code | 842121 |
