Philips 381863 TUV PL-S 5W/2P - 5W - G23 Base - 83mm - 10ct
($5.19 Each - Sold in Case of 10)
This is a Philips TUV PL-S 5W/2P G23 base ultraviolet germicidal lamp.
TUV PL-S lamps are compact UVC (germicidal) lamps used in residential water and air disinfection units. The compact size of the lamp allows for a small system design and design flexibility. TUV PL-S lamps offer constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Thanks to the single-ended lamp base, lamp replacement is easy.
Benefits
- Security of effective disinfection over the useful lifetime of the lamp
- High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
- Good environmental choice because of lowest amount of mercury
Features
- Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
- Protective inside coating ensures constant UV output over the complete lifetime of the lamp
- Lamp glass filters out the 185 nm ozone-forming radiation
- 2-Pin PL-S lamp base contains a special starter for almost instant starting on electromagnetic drivers
- 4-Pin PL-S lamps are designed for use on electronic drivers
- Warning sign on lamp indicates that the lamp radiates UVC
Applications
- Deactivation of bacteria, viruses and other micro-organisms
- Residential drinking water units
- Pond water units
- Air treatment units
- Stand-alone purifiers
Warning & Safety
A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.
Lamp contains mercury. Manage in Accord with Disposal Laws.
DANGER: Risk Group 3 Ultra Violet product. These lamps emit high-power UV radiation that can cause severe injury to skin and eyes. Avoid eye and skin exposure to unshielded product. Use only in an enclosed environment which shields users from the radiation.
About Philips Lighting
Philips Lighting is a global leader in lighting, known for innovative lighting products and new technology. The company is headquarted in Europe but operates worldwide, serving both business and consumer markets. Philips Lighting comprises all types of lighting products, including LED, automotive, specialty and conventional lighting, controls, electronics, luminaires, and more.
Cap-Base | G23 |
---|---|
Cap-Base Information | 2 Pins |
Color Code | TUV |
Lamp Current (Nom) | 0.18A |
Lamp Type | UV-C Germicidal |
Main Application | Disinfection |
Mercury (Hg) Content (Nom) | 3 |
Power (Rated) (Nom) | 5.5W |

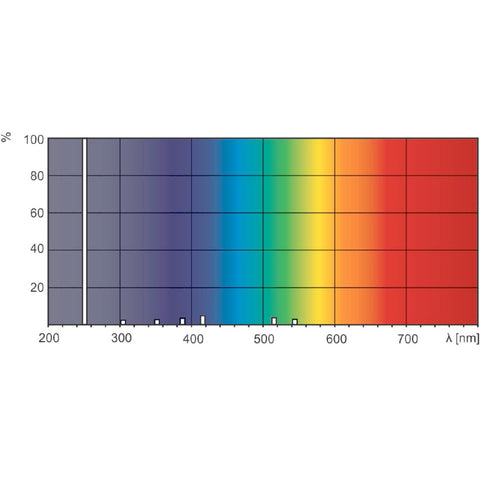

Spectrum | 254nm |
Total UV Output | 1.1W |
Useful Life (Nom) | 9000h |
ProLampSales Order Code | 4253131014276 |
---|---|
Brand | Philips |
Series | TUV |
MPN | 381863 |
Model | TUV PL-S 5W/2P |
UPC | 8711500642486 |
HS Code | 853949 |
