Atlantic UV Lamp Socket | 34" Mini Bi-Pin Lamp Socket
Atlantic UV Minimum Order Amount: $60.00

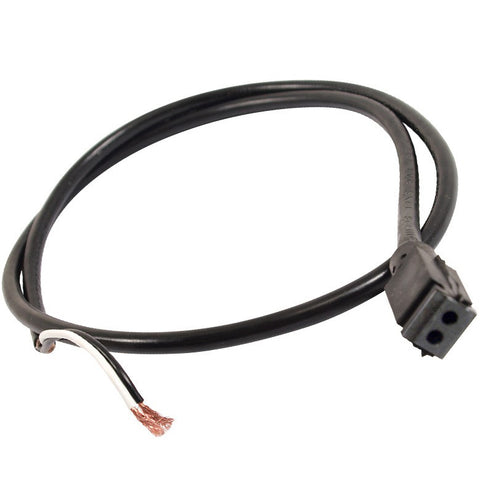

This product is an Atlantic Ultraviolet Lamp Socket. It has a part number of 05-2400A.

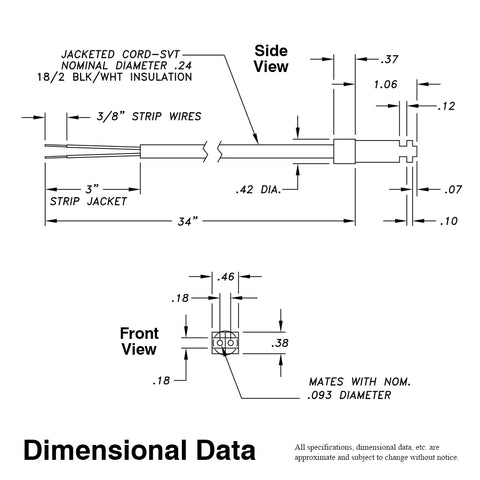

For full specifications, please see Dimensional Data image on this page. All specifications are approximate and subject to change without notice.
Features
- Mini Bi-Pin Socket
- 34 Inch Lead Wire
- Jacketed Cord—SVT Nominal Diameter .24"
- 18/2 Black/White Insulation
About Atlantic Ultraviolet
Atlantic Ultraviolet was founded in 1963, manufacturing germicidal ultraviolet fixtures and equipment. Their products utilize germicidal UV lamps to destroy bacteria, mold, and viruses in the air and on surfaces. Atlantic Ultraviolet produces their own line of UV lamps, and continue to provide industry leadership in applied UV technology with increased research and development.
Height | 0.38" |
---|---|
Jacket Stripped | 3" |
Length | 0.34" |
Pin Distance | .18" (Mates with Nominal .093 Diameter) |
Width | 0.46" |
Wire Stripped | 0.38" |
ProLampSales Order Code | 4249277628548 |
---|---|
Brand | Atlantic Ultraviolet |
MPN | 05-2400A |
HS Code | 853661 |
Categories: Atlantic Ultraviolet, G5 Mini Bi-Pin Sockets & Lampholders
