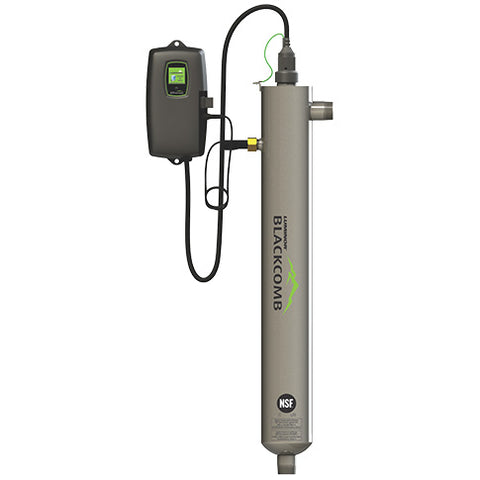

Luminor LBH6-151A Blackcomb-HO UVC Water Purifier - 5.4 GPM - 1" MNPT Inlet/Outlet - NSF Class A

For higher flow rates, consider then LUMINOR's NSF Class A BLACKCOMB-HO 6.1 line of "Residential Crossover" UV treatment systems.

Installed in a large residence or in a light commercial application, continuous UV monitoring is provided by the inclusion of a true 254nm discrete UV monitor. Using Teflon technology for reduced fouling, these sensors allow for the addition of a solenoid shut-off valve and a 4-20mA output allowing for remote monitoring or data logging.

A color user interface allows for easy visual identification of UV intensity, remaining lamp life and any error or fault codes as well as a monitoring of a full system diagnostic on start-up. The UV system also incorporates QR codes to access lamp change information and videos via web access. The controller's universal input, constant current electronic power source is housed in a splash-proof case and comes standard with a "future-proof" expandability port for future upgrades or options.

Our axial flow 316L stainless steel, single-end reactors allow for lamp change without the need to drain the reactor chamber. Low pressure, high-output (LP-HO) coated UV lamps offer a consistent output over their 10,000 hour rated life.

Features

• Flow rates stated at NSF Class A dose of 40 mJ/cm2 at 70% UVT
• System includes 254 nm Teflon based UV sensor with 4-20 mA output capabilities and solenoidready capabilities (optional modules required)
• Color user interface with full diagnostics and warnings including QR codes
• IEP (infinite expandability port) for future upgrades and options
• 304 stainless steel (BLACKCOMB) / 316L stainless (BLACKCOMB-HO), axial flow reactors allow for simple lamp/sleeve service
• All systems include integral flow restrictor

SPECIAL NOTE: Due to the stringent testing protocol of the NSF Class A standard it is IMPERATIVE that water quality parameters be met before the UV unit is installed. Please refer to Installation Guidelines for specific parameters. A UVT (transmittance) test MUST also be performed on the raw water as this test will provide critical data that could effect system performance. LUMINOR will perform UVT tests at no charge on any water sample that is sent in for analysis (prepaid samples will NOT be accepted). Please contact us for more information.

About Luminor Environmental

Based in Canada, Luminor Environmental specializes in ultraviolet water treatment solutions for residential, light commercial, commercial/industrial, and municipal applications. The company strives to provide its customers with industry-leading service, support, product, and warranty. Luminor distributes UV water purification solutions to over 55 countries with hundreds of thousands of installations.
