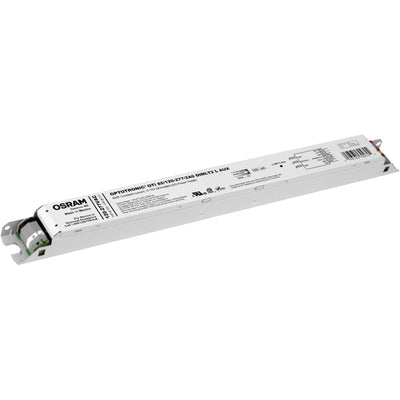

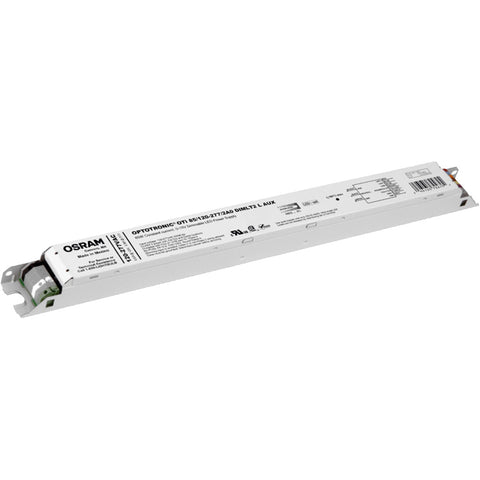

Osram Optotronic OTi 48/120-277/2A0 DIM-1 L G2 Constant Current LED Driver - 120-277V - 10-55VDC Output Volts - 0-10V Dimming - Programmable

$52.95

The OPTOTRONIC programmable dimmable family consists of highly efficient, linear, constant current LED power supplies. One click programming through the OPTOTRONIC programmer allows OEMs to configure the output current with 1mA resolution. Also fully customizable by customers are the end of life indicator, LED thermal protection and the constant lumen maintenance features. The OPTOTRONIC programmer does not require the power supply to be powered up or connected to AC line voltage while program-ming. The power supplies are available with built-in 0-10V dimming protocol with models available in true 1% to 10%. The auxiliary output has the capability to power various sensors and is optimized for the OSRAM Connected Lighting Module (CLM).

Features & Benefits

OEM Programmable with 1mA resolution to perfectly match LED load and maximize performance
Integrated OEM programmable features include:Constant lumen maintenance, End of life indication, LED thermal protection, Dim-to-off, Soft start
Programming doesn't require powering up or connecting the power supply to AC line voltage
Specification grade dimming down to true 1% or 10% on 0-10V dimmers
Available optional auxiliary output to power 12V, 20V, and 24V low power applications
Slim form factors
Input voltage: Universal 120-277Vac 50/60Hz
UL Class 2 output for safe operation

Applications

Indirect/direct
Linear
Recessed troffer

About Osram

Osram provides businesses and consumers with a wide portfolio of products, encompassing many types of technical and professional lighting applications. These include automotive lighting, complete "Smart" digital systems, advancted LED chips, speciality light bulbs and fixtures, and more. Osram serves both consumer and professional markets, and manufactures traditional lighting products, as well as LED lamps and luminaires.

Certifications	cSAus, cULus, RoHS
Dimming	0-10V
Driver Type	Constant Current
Input Frequency	50/60 Hz
Location Rating	Damp and Dry
Output Current Range	700-2000mA
Output Volts	10-55 VDC
Volts	120-277
Watts	48

ProLampSales Order Code	6809881477320
Brand	Osram
Series	Optotronic
MPN	57434
Model	OTi 48/120-277/2A0 DIM-1 L G2
UPC	046135574344
HS Code	854239

Documents

Brochure
