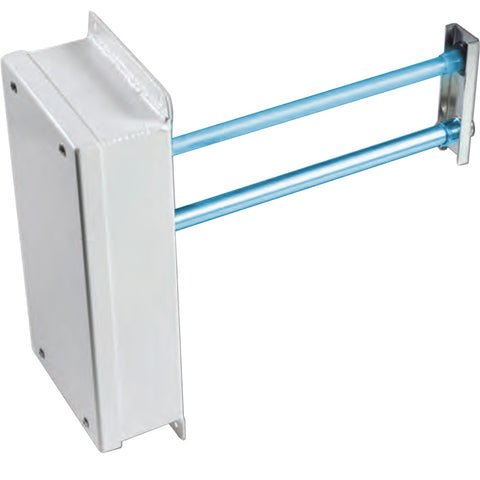

Outdoor HVAC UVC Disinfection Unit - 2 Lamp High Output - 14" Length Into Duct
This UVC HVAC unit is designed for outdoor units. It utilizes a weather-resistant NEMA 4X housing, so it can be installed on the exterior of rooftop AC units or ventilation ducts. This makes them convenient for outdoor location that may be difficult to access.
Our outdoor HVAC units use UVC germicidal bulbs that are low mercury. They are designed to provide the best and longest-lasting UVC irradiation intensity and performance available. The bulbs are are rated to produce 11.7µW/cm2 per linear inch of lamp arc length at a distance of 1 meter in a 45° F and 400 fpm airstream.
This unit is factory assembled in the USA, and comes complete with the weather-resistant NEMA 4X housing, electronic ballast, bulb, and wiring harness.
Benefits
- Improved Indoor Air Quality (IAQ) by reducing bacteria, viruses, and mold that grow or pass through HVAC systems.
- Reduced risk of cold, flu, allergies, and other illnesses associated with HVAC units
- High-output, low mercury bulbs
- Eighteen-month (17,000 hour) guarantee on bulbs
- Five-year warranty on ballast
- Reduced energy cost through restored heat transfer and increased net cooling capacity
- Continuous UVC disinfection of coils and drain pans
- Ozone-free equipment
- Quick and easy installation
Applications
- Rooftop air conditioning units
- Outdoor HVAC systems or ducts
About American Ultraviolet
Founded in 1960, American Ultraviolet specializes in a wide range of ultraviolet systems and replacement parts. The company manufacturers UVC germicidal fixtures, UV curing systems, and ultraviolet coating solutions. American Ultraviolet is headquartered in Lebanon, Indiana, and has offices throughout the United States, and manufacturers its products in the USA.
Bulb Life Hours | 17000 |
---|---|
Country of Origin | USA |
Enclosure Rating | NEMA 4X |
Length into Duct | 14" |
No. of Lamps | 2 |
Total UV Output | 17W |
ProLampSales Order Code | 5282124923047 |
---|---|
Brand | American Ultraviolet |
Series | NC NEMA 4X |
MPN | NC14-2 |
HS Code | 853949 |
Categories: American Ultraviolet, UVC In-Duct HVAC Outdoor
