Atlantic UV 05-0669 G48T5VH/3 - 55W - 3-Pin - 1148mm - Ozone

12 Month Warranty
  • $85.95
  • $95.50
Contact Us for Lead Time.

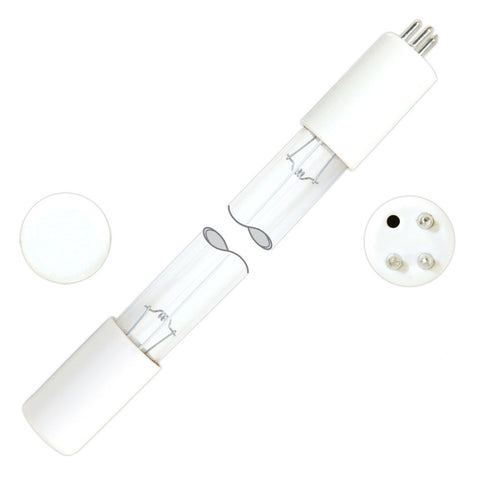

This product is an Atlantic Ultraviolet Instant Start Ultraviolet Lamp. It has a part number of 05-0669.

Instant Start germicidal lamps utilize a coil filament on each end which operates hot. Lamp life is governed by the life of the electrodes and is affected by the frequency of starting. Instant Start germicidal lamps are well-suited to applications requiring high ultraviolet intensity such as water sterilization, air purification, in duct systems, and conveyorized product disinfection.

About Atlantic Ultraviolet

Atlantic Ultraviolet was founded in 1963, manufacturing germicidal ultraviolet fixtures and equipment. Their products utilize germicidal UV lamps to destroy bacteria, mold, and viruses in the air and on surfaces. Atlantic Ultraviolet produces their own line of UV lamps, and continue to provide industry leadership in applied UV technology with increased research and development.

Base3-Pin
Lamp TypeUV-C Germicidal
Length1148 mm
OutputStandard
OzoneOzone Producing
Ozone Output5.2 g/hr
Qtz. OD15 mm
Rated Life Hours10000
Spectrum254nm/185nm
Total UV Output21W
Warranty12 months
Watts55
Wires2
WiringInstant Start

ProLampSales Order Code4249244172420
BrandAtlantic Ultraviolet
SeriesSter-L-Ray
MPN05-0669
HS Code853949
