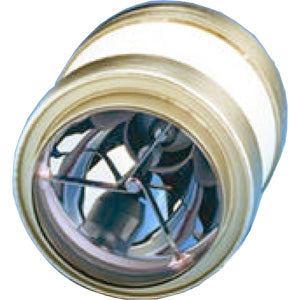

Excelitas PE300BUV - 300W - 14V DC - Type B Parabolic Ceramic Xenon
This Excelitas PE300BUV is a 300 Watt 14 Volt (DC) Type B Elliptical Lamp.
Equipment Used In
- Asahi MAX-303
About Excelitas Technologies
Excelitas manufactures the Ceramax® line of ceramic xenon lamps, a leading technology used in diagnostic and surgical endoscopes, surgical microscopes, and surgical headlamps. Their products can also be found in high performance video and home theater projectors. Excelitas was founded in 2010, and continues to expand the markets and applications their technology serves.
Arc Gap (inches) | 0.049 |
---|---|
Arc Gap (mm) | 1.24 |
Cathode Defocus 'D' (inches) | 0.003 |
Cathode Defocus 'D' (mm) | 0.08 |
Color Temperature | 5050K |
Current | 21 Amps (DC) |
Current Range | 10-22 Amps (DC) |
IR Output (>770NM^3) | 26.8 |
Lamp Type | Type B Parabolic |
Maximum Operating Power | 150° Celsius |
Peak Intensity (Candelas) | 3 |
Power Range | 180-320W |
Radiant Output | 50W |
Rated Life Hours | 500 |
UV Output (<390NM^3) | 6.6W |
Visible Output (390-770NM^3) | 4500 Lumens |
Voltage Range | 13-16V (DC) |
Volts | 14 |
Watts | 300 |
Window Diameter (inches) | 1 |
Window Diameter (mm) | 25.4 |
ProLampSales Order Code | 4252960587908 |
---|---|
Brand | Excelitas |
MPN | PE300BUV |
HS Code | 853941 |
Categories: Ceramic Xenon, Excelitas
