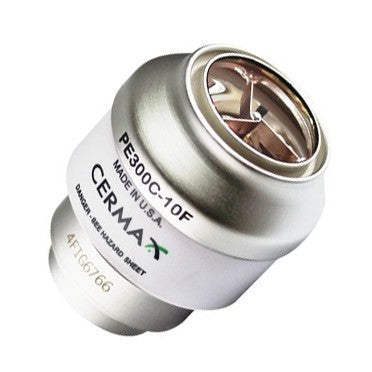

Excelitas PE300C-10F - 300W - 13.5V DC - Type C Elliptical Ceramic Xenon
Minimum Order Quantity: 10
The integrated elliptical reflector in this 300 Watt Cermax® Xenon lamp creates a converging beam eliminating the need for secondary focusing optics. The unique oversized reflector improves light collection and maximizes the efficiency of the lamp. This lamp is well suited for use where small aperture sizes are a requirement.
- Reflector Type: Elliptical, f/1.0
- Body Type: Ceramic
- Total Visible Output: 7475 Lumens
- Power - Nominal: 300 Watts
- Power - Range: 200-300 Watts
- Current - Nominal: 21 Amps (DC)
- Current - Range: 13-26.5 Amps (DC
- Ignition Voltage: 23 kilovolts (recommended minimum, system dependent)
- Operating Voltage - Nominal: 12 Volts (DC)
- Operating Voltage - Range: 11.5-15 Volts (DC)
- Lifetime: 1000 hours typical
- Temperature: 150° C (maximum)
- Radiant Output: 75 Watts
- UV Output (<390 nm): 3.8 Watts
- IR Output (>770 nm): 37 Watts
Equipment Used In
- Stryker X7000
About Excelitas Technologies
Excelitas manufactures the Ceramax® line of ceramic xenon lamps, a leading technology used in diagnostic and surgical endoscopes, surgical microscopes, and surgical headlamps. Their products can also be found in high performance video and home theater projectors. Excelitas was founded in 2010, and continues to expand the markets and applications their technology serves.
| Arc Gap (inches) | 0.045 |
|---|---|
| Arc Gap (mm) | 1.14 |
| Beam Geometry (1 Hour) | 0.06 |
| Beam Geometry (100 Hours) | 1.5 |
| Beam Geometry (1000 Hours) | 0.21 |
| Cathode Defocus 'D' (inches) | 0.005 |
| Cathode Defocus 'D' (mm) | 0.13 |
| Color Temperature | 5900K |
| Current | 22 Amps (DC) |
| Current Range | 13-23 Amps (DC) |
| F-Number | 1 |
| Focal Distance 'A' (inches) | 0.75 |
| Focal Distance 'A' (mm) | 19.1 |
| IR Output (>770NM^3) | 37 |
| Lamp Type | Type C Elliptical |
| Maximum Operating Power | 150° Celsius |
| Minimum Pulse Duration | 100 Ns |
| Power Range | 175-300W |
| Radiant Output | 75W |
| Rated Life Hours | 1000 |
| UV Output (<390NM^3) | 3.8W |
| Visible Output (390-770NM^3) | 7475 Lumens |
| Voltage Range | 11.5-15V (DC) |
| Volts | 13.5 |
| Watts | 300 |
| Window Diameter (inches) | 1 |
| Window Diameter (mm) | 25.4 |
| ProLampSales Order Code | 4252960620676 |
|---|---|
| Brand | Excelitas |
| MPN | PE300C-10F |
| HS Code | 853941 |
